Tube Amplifier Transformers: Equal parts to spec and sound
Jan 21,2025 | nretec
Building the perfect tube amplifier from the ground up is near impossible without a keen transformer playing major role in shapin the performance & tonality.
-2.jpeg?w=800&h=800)

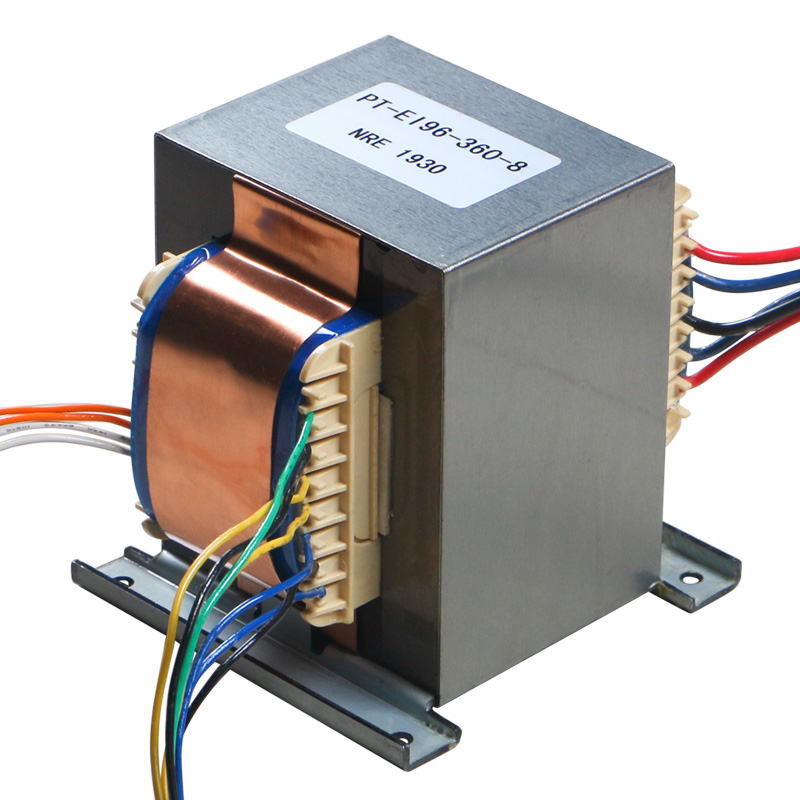

High-end EI-type Power Transformer for Tube Amplifiers
Transformer phase, EI or otherwise wiring matches not vehicle but is also critical when you decide what type of transformer to pick or any kind of custom build for that matter, you must know details of matching specifications to your amp requirements if ever want optimum sound. So we are going to take a look at Basic Parameters, Power Level Considerations and Sound Enhancement Hints.
Fundamental of Performances Matching Parameters

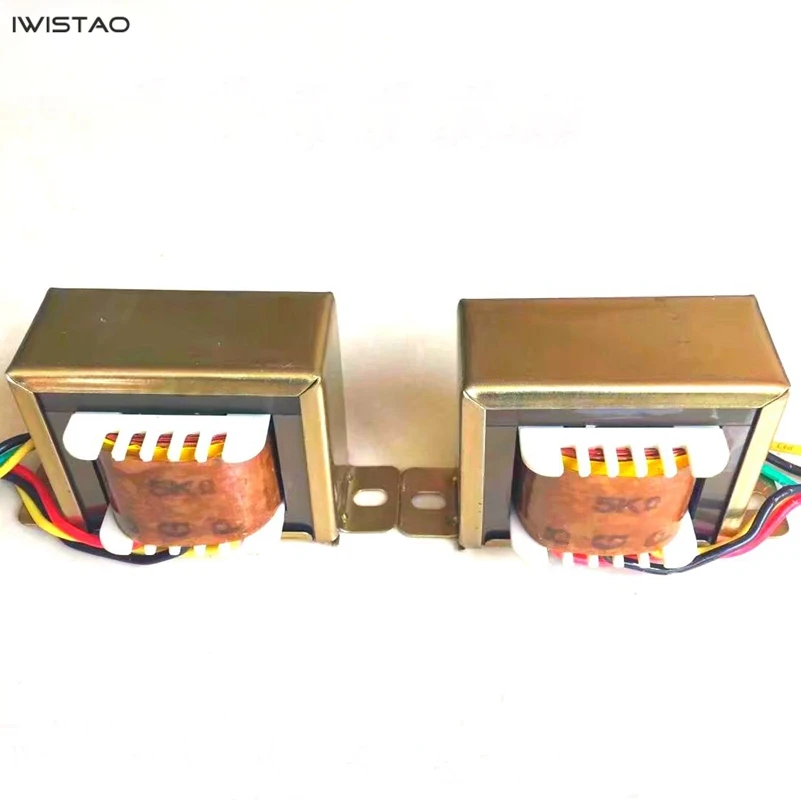

Professional EI Audio Output Transformer showing internal construction
Firstly in selecting the output transformer, you must be struck with proper impedance matching between your output transformer and tube amp. This means initiating the primary impedance of transformer with operating frequency of tubes and maintaining the speaker load on the secondary side. Specifically, if you need to issue honorarium receipts? 20 or, using EL34 or KT88 tubes, the normal primary impedances are 3kΩ–6kΩ.

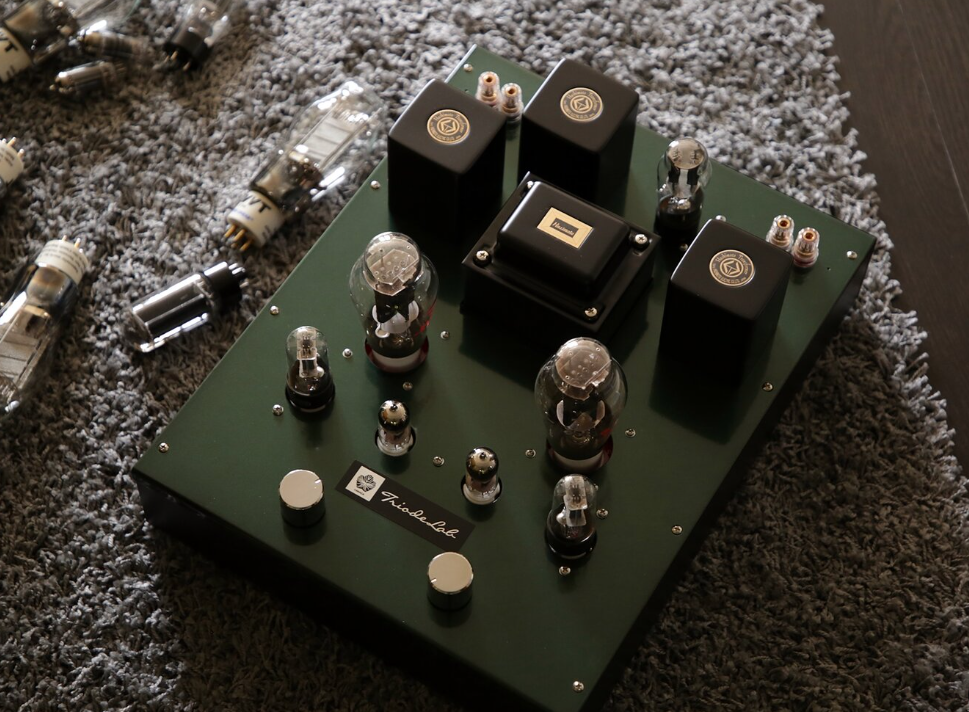

High-end custom tube amplifier showing transformer implementation
Choosing Transformers for Different Power Levels
Transformer selection is another key parameter that is highly dependent on power output. For low power tube amplification (5W–15 Watt) compact small-sized EI transformers are sufficient, a Low-end RF electronics book for example. At higher powers (e.g., 50W–100W), you need more robust transformers with the ability to carry current the spells respectively.

Ultra Linear Z11 Single-ended EI Transformer
Improvements in sound quality
The intersection of technical precision & the craft of Pro-audio sound quality. To get the smooth, warm clarket which you associate with a tube amp, the transformers you use need to have as little distortion and phase shift of any sort. Custom Transformers Custom made transformers can be tailored for nuances in tonal character, for example making your midrange sound roomier or pushing highs ever closer.
Why EI Transformers & Custom Transformers Matter
High-end custom-made tube amplifier with premium transformers
Final Thoughts
Matching a tube amp with the right transformer is a balance of science and sound. Let it be exactly an off-the-shelf transformer with EI or get a custom transformer, but attention to detail in both design and build will pay dividends on how slick your audio plant will sound.
Following these guidelines will not only improve your amplifier reliability but unlock the full sonic potential of it perfectly combining engineering and musicality.
