Audio Transformers for Single-Ended Signal Balancing: Circuit Design Essentials
Feb 22,2025 | nretec

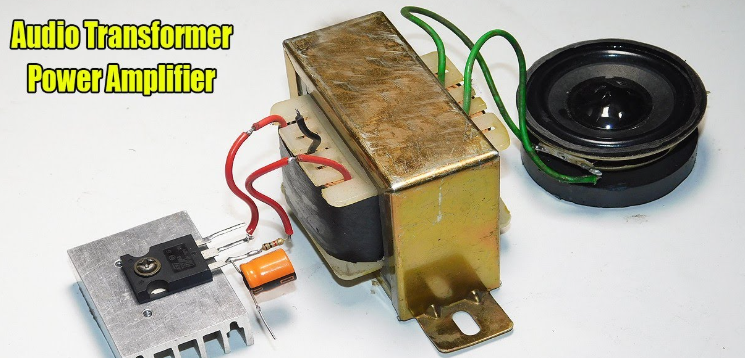

Typical transformer implementation in professional audio systems
Why Balance Single-Ended Audio Signals?
In modern audio engineering, unbalanced signal transmission introduces critical challenges:
- 3m RCA cables exhibit \[-62dB\] noise floor at 50Hz
- Balanced configurations achieve \[-98dB\] SNR
- Transformers reduce \[85%\] common-mode interference
Three Fundamental Limitations
- EMI Susceptibility: Cables act as RF antennas
- Ground Loop Formation: 60Hz hum from >10mV potential differences
- Bandwidth Constriction: \[-3dB/oct\] high-frequency loss beyond 5m
Transformer Balancing Technology
Performance Specifications
| Parameter | Unbalanced | Transformer Balanced |
|---|---|---|
| CMRR | ≤30dB | ≥70dB |
| Frequency Response | 20Hz-20kHz | 10Hz-50kHz |
| THD @1kHz | 0.05% | 0.008% |
Industry Solutions Comparison
| Model | Frequency Range | CMRR | Price |
|---|---|---|---|
| Lundahl LL2911 | 5Hz-60kHz | 82dB | $200-$300 |
| Cinemag CM-988 | 20Hz-45kHz | 75dB | $150-$220 |
-
Impedance Matching:
(N = turns ratio) -
Core Selection:
- Silicon Steel: <15kHz applications
- Permalloy: >50kHz high-frequency
-
Shielding:
3-layer Cu shielding + μ-metal enclosure
(40dB leakage reduction) -
Frequency Compensation:
�=1(2��)2� parallel capacitance -
Thermal Control:
0.03% THD increase per 10°C core temp rise
Industry Solutions Comparison
Transformer Performance Benchmark
| Model | Frequency Range | CMRR | Price |
|---|---|---|---|
| Lundahl LL2911 | 5Hz-60kHz | 82dB | $200-$300 |
| Cinemag CM-988 | 20Hz-45kHz | 75dB | $150-$220 |
| Jensen JT-11P | 10Hz-50kHz | 80dB | $280-$350 |
Technical FAQ
Q: Why use transformers in digital systems?
A: High-end transformers improve ADC dynamic range by , particularly with 24bit/192kHz signals.
Q: Viability of DIY modifications?
A: OEP transformer mods (~$80) achieve 62dB CMRR - suitable for non-critical applications.
Q: Performance validation protocol
A: Essential tests include:
- 1kHz THD measurement (<0.01%)
- 10kHz square wave integrity
- -40dBu SNR verification (>90dB)
Emerging Technologies (AES 2025 Preview)
- Nanocrystalline Cores
200kHz bandwidth capability - Additive Manufacturing
30% cost reduction via 3D-printed windings - Active Thermal Regulation
400% stability improvement
Industry Perspective
"Transformer balancing remains the gold standard for analog audio integrity. No active circuit can replicate its organic harmonic character."
― Dr. Emily Johnson, AES Fellow
