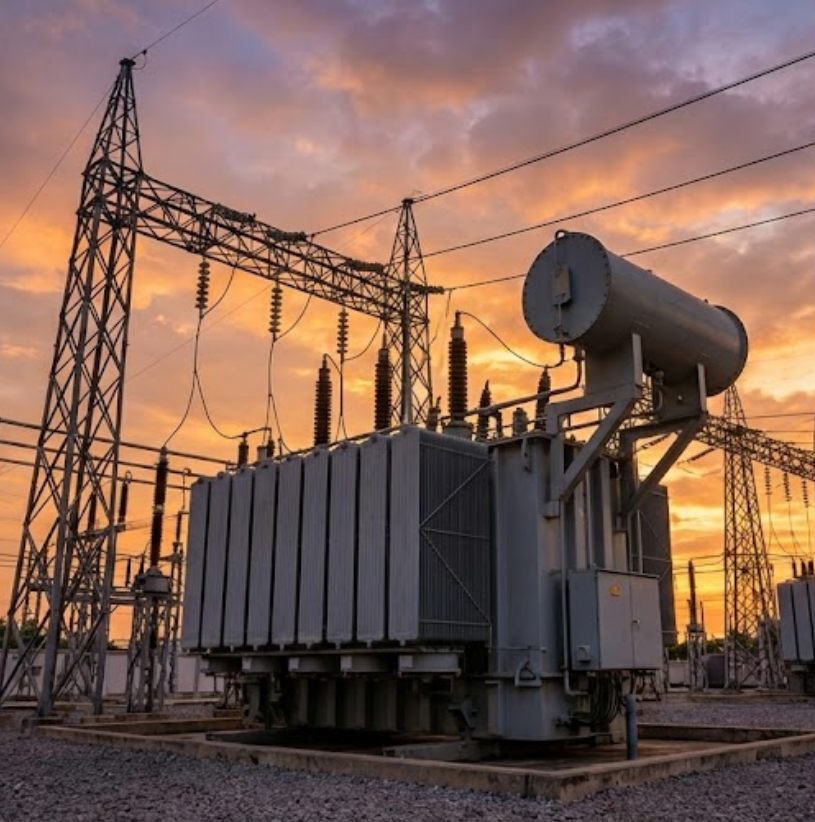

Figure 1: Modern high-voltage power transformers are critical components of the global electrical grid.
Power transformers are the backbone of modern electrical power systems, enabling the efficient transmission and distribution of alternating current (AC) power across vast distances. Whether you're an electrical engineer specifying components for a new power plant, a procurement manager sourcing industrial equipment, or a technical buyer evaluating options, understanding the different types of power transformers is essential for making informed decisions.
In this comprehensive guide, we'll explore 12+ classifications of power transformers, complete with comparison tables, real-world efficiency data, and expert recommendations from NRE's 32+ years of transformer manufacturing experience.
📑 Quick Navigation
Selecting the wrong transformer type can result in:
- Energy losses up to 15% annually
- Voltage regulation issues causing equipment damage
- Short circuit vulnerabilities compromising safety
- Premature failure due to mismatched cooling requirements
Classification by Core Design
The core design fundamentally affects a transformer's efficiency, size, and electromagnetic interference (EMI) characteristics. Here are the primary core types:

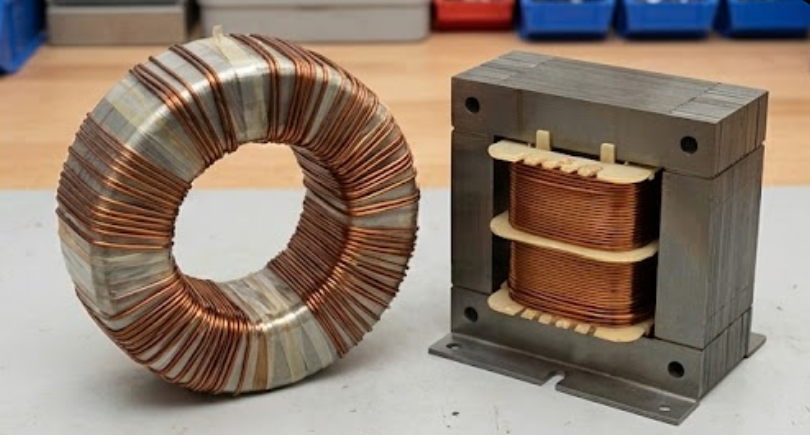

Figure 2: Visual comparison of Toroidal (Ring) vs. EI Laminated (Square) transformer core structures.
1. Toroidal Core Transformers
Toroidal transformers feature a donut-shaped core wound from continuous strips of silicon steel or amorphous metal. This design offers superior high efficiency and minimal stray magnetic fields.
| Specification | Toroidal | EI Laminated |
|---|---|---|
| Efficiency | 90-97% | 85-92% |
| Size/Weight | 40-50% smaller | Baseline |
| Stray Magnetic Field | ~1/10 of EI | Higher |
| Mechanical Noise | < 30dB | 40-50dB |
| Cost | Higher | Lower |
Best Applications: Audio equipment, medical devices, laboratory instruments, and applications requiring low EMI.
2. EI Laminated Core Transformers
EI transformers use stacked E-shaped and I-shaped silicon steel laminations. They remain the most widely used type due to cost-effectiveness and ease of manufacturing for a wide range of power ratings.
Key Characteristics:
- Primary and secondary windings wound on separate bobbins
- Good voltage isolation between windings
- Suitable for power ratings from 1VA to 10kVA+
3. Shell-Type Transformers
In shell-type construction, the core and winding arrangement has the core encircling both primary and secondary windings. The central limb carries the full magnetic flux while outer limbs carry half each.
Advantages: Better short-circuit strength, higher kVA-to-weight ratio, preferred for high-voltage applications (>230kV).
4. Core-Type Transformers
Core-type transformers have windings surrounding the core limbs. They offer more economical manufacturing and easier winding access for maintenance.
Classification by Turns Ratio (Voltage Function)
The turns ratio between primary and secondary coils determines whether a transformer steps voltage up or down.
5. Step-Up Transformers
Step-up transformers increase voltage levels from primary to secondary winding. They are essential at power plants for boosting generator output voltage for long-distance transmission.
| Application | Input Voltage | Output Voltage | Typical Rating |
|---|---|---|---|
| Power Generation | 11-33kV | 132-765kV | 100-1000MVA |
| Solar Inverter | 380-480V | 10-35kV | 1-5MVA |
| Wind Turbine | 690V | 33kV | 2-8MVA |
6. Step-Down Transformers
Step down transformers reduce high voltage transmission voltages to usable distribution voltage levels. They're found in substations and end-user facilities, helping minimize energy losses in the distribution network.
7. Isolation Transformers
Isolation transformers have a 1:1 turns ratio, providing galvanic isolation. They transfer electrical energy while preventing DC current flow between circuits—critical for medical equipment, sensitive instruments, and construction sites.
Classification by Phase Configuration
8. Single-Phase Transformers
Single-phase transformers operate with a single AC power waveform. They feature simple construction and are common in residential and light commercial power supply applications.
9. Three-Phase Transformers
Three-phase transformers handle three AC waveforms offset by 120 degrees, enabling constant power delivery for industry applications.
| Configuration | Symbol | Application |
|---|---|---|
| Star-Star (Y-Y) | Yy | High-voltage transmission |
| Delta-Delta (Δ-Δ) | Dd | Industrial loads |
| Star-Delta (Y-Δ) | Yd | Step-down distribution |
| Delta-Star (Δ-Y) | Dy | Step-up generation |
Classification by Cooling Method
Heat dissipation directly impacts transformers efficiency and longevity.

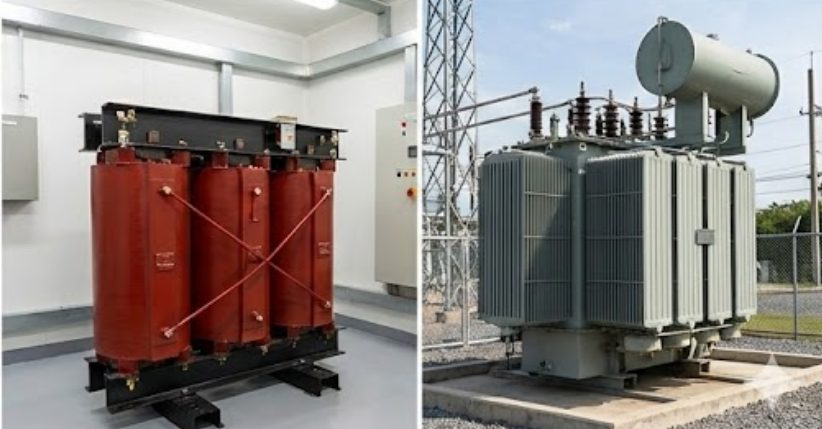

Figure 3: Dry-Type (Left) for indoor safety vs. Oil-Filled (Right) for high-capacity outdoor power transmission.
10. Dry-Type Transformers (AN/AF)
Dry-type transformers use air for cooling with solid insulation. They offer lower fire risk, no flammable oil, and are ideal for indoor installations.
11. Oil-Filled Power Transformers (ONAN/ONAF/OFAF)
Filled power transformers use mineral oil or synthetic esters for both insulation and cooling, enabling higher power ratings and better voltage regulation.
| Cooling Code | Description | Application Range |
|---|---|---|
| ONAN | Oil Natural, Air Natural | Up to 30MVA |
| ONAF | Oil Natural, Air Forced | 30-90MVA |
| OFAF | Oil Forced, Air Forced | 90MVA+ |
| OFWF | Oil Forced, Water Forced | Large power plants |
Classification by Application
12. Distribution Transformers
Distribution transformers operate at voltage levels from 230V to 33kV, stepping down transmission voltage for end-user consumption with typical ratings of 16kVA to 2500kVA.
13. Power Transformers (Transmission Class)
Large power transformers handle transmission-level voltages (33kV to 765kV) with ratings from 5MVA to over 1000MVA.
14. Instrument Transformers
- Current Transformers (CT): Step down high currents for metering and protection
- Potential Transformers (PT): Step down high voltages for measurement
15. Autotransformers
Autotransformers use a single winding with taps, offering higher efficiency and smaller size—but no galvanic isolation.
16. Rectifier Transformers
Designed for AC-to-DC conversion with multiple secondary windings for electrochemical processes, welding, and DC drives.
Comparison Table: All Transformer Types
| Type | Voltage Range | Power Range | Efficiency | Best Application |
|---|---|---|---|---|
| Toroidal | 5V-1kV | 1VA-25kVA | 90-97% | Audio, Medical |
| EI Laminated | 5V-10kV | 1VA-50kVA | 85-92% | Industrial Power Supply |
| Step-Up | 11kV-765kV | 1MVA-1000MVA | 98-99.5% | Power Generation |
| Step-Down | 11kV-400V | 16kVA-100MVA | 98-99% | Distribution |
| Isolation | 120V-480V | 25VA-500kVA | 95-98% | Medical, IT |
| Three-Phase | 400V-765kV | 10kVA-1000MVA | 98-99.5% | Industrial, Utility |
| Dry-Type | 480V-35kV | 5kVA-30MVA | 97-99% | Indoor, Commercial |
| Oil-Filled | 11kV-765kV | 1MVA-1500MVA | 98-99.5% | Utility, Power Plant |
NRE Product Recommendations
Based on 32+ years of manufacturing excellence and serving global industry leaders:
🔊 Audio & Hi-Fi
Toroidal Audio Transformers
- Ultra-low noise floor (<-100dB)< /li>
- Custom voltage configurations
- Trusted by Harman, Yamaha
🏥 Medical Equipment
Medical-Grade Isolation Transformers
- IEC 60601-1 compliant
- Ultra-low leakage current
- UL, CE, TUV certified
⚡ Industrial Control
EI Power Transformers
- Wide power range (1VA-10kVA)
- Custom mounting options
- Cost-effective solutions
☀️ Renewable Energy
Custom Power Transformers
- High efficiency (>98%)
- Global certifications
- Trusted by Schneider, SMA
🏆 Trusted by Global Industry Leaders
Frequently Asked Questions
What is the main difference between power transformers and distribution transformers?
Power transformers operate at transmission voltage levels (33kV-765kV) with ratings above 200MVA, primarily used at power plants and major substations. Distribution transformers operate at lower voltages (230V-33kV) with smaller ratings (up to 2500kVA), delivering power to end consumers.
Which transformer type is most efficient?
Toroidal transformers achieve the highest efficiency (90-97%) in low-to-medium power applications due to their closed magnetic circuit. For high-power utility applications, modern oil-filled power transformers can achieve 98-99.5% efficiency.
Can I use a step-down transformer as a step-up transformer?
Technically yes, by applying voltage to the normally secondary winding. However, this is not recommended as the insulation and winding design are optimized for specific voltage levels. Always consult the manufacturer.
What certifications should I look for in power transformers?
Key certifications include: UL (North America), CE (EU), IEC 60076 (International standards), IEEE C57 (North American standards), and ISO 9001 (Quality management).
