What is a 20kV dry transformer used for?

May 24,2024

The Importance of 20kV Dry Transformers in Modern Electricity Distribution

Electricity is the backbone of our modern society, powering everything from our homes and workplaces to industries and infrastructure. Within the complex electrical infrastructure, transformers play a critical role in maintaining a reliable and efficient power supply. One type of transformer that has gained significant importance in recent years is the 20kV dry transformer.

Understanding 20kV Dry Transformers

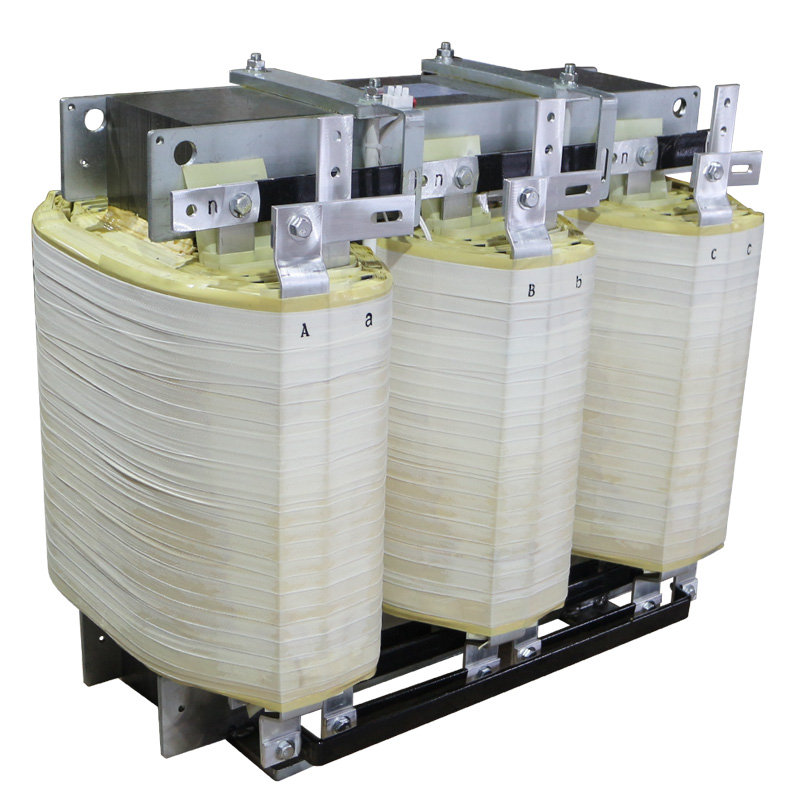

A 20kV dry transformer is a type of electrical transformer that operates at a voltage level of 20,000 volts (20kV) and uses dry insulation materials, such as epoxy resin, instead of traditional oil-filled systems. This innovation offers numerous benefits, making dry transformers an ideal choice for modern electricity distribution networks.

Dry transformers work on the principle of electromagnetic induction, just like any other transformer. They consist of a primary winding, a secondary winding, and a magnetic core. When an alternating current (AC) passes through the primary winding, it creates a magnetic field that induces a voltage in the secondary winding, enabling efficient voltage transformation.

The key component that sets dry transformers apart from their oil-filled counterparts is the insulation system. Instead of using oil as a coolant and insulation medium, dry transformers rely on advanced epoxy resin or other solid materials to provide insulation. This design eliminates the risk of oil leakage, reduces fire hazards, and enhances overall safety.

Applications of 20kV Dry Transformers

20kV dry transformers find wide-ranging applications in modern electricity distribution systems:

1. Electricity distribution networks: These transformers are an integral part of power transmission and distribution networks. They ensure efficient voltage reduction or stepping up for power transmission to long-distance substations and distribution to end users.

2. Industrial and commercial sectors: 20kV dry transformers find extensive use in various industrial and commercial settings:

a. Manufacturing plants: These transformers power heavy machinery and equipment, maintaining a consistent power supply to ensure uninterrupted production.

b. Hospitals and healthcare facilities: Reliable power supply is crucial for hospitals and healthcare facilities. 20kV dry transformers offer stable voltage regulation, ensuring critical medical equipment operates smoothly.

c. Data centers: In the era of IoT and growing data demands, data centers require efficient power infrastructure. Dry transformers are space-saving and can handle high electrical loads, making them suitable for data center applications.

Benefits and Features of 20kV Dry Transformers

There are several advantages that make 20kV dry transformers stand out:

1. Increased safety and reliability: With no flammable fluids and reduced risk of leaks, dry transformers enhance safety and minimize the chances of electrical fires. They also have a longer lifespan, leading to increased reliability and reduced downtime.

2. Reduced maintenance requirements: Unlike oil-filled transformers that require periodic oil testing, filtering, and replacement, dry transformers have negligible maintenance needs. This translates to cost savings and less disruption in operations.

3. Compact design and space-saving benefits: Dry transformers have a compact design, saving valuable floor space. This feature is particularly beneficial in crowded installations where space is limited.

4. Environmental advantages: Dry transformers are eco-friendly as they eliminate the risk of oil spills and reduce the use of hazardous substances. They comply with environmental regulations and contribute to a sustainable energy infrastructure.

Considerations for Choosing a 20kV Dry Transformer

Prior to selecting a 20kV dry transformer for your specific application, consider the following factors:

1. Load requirements and capacity: Evaluate the power demands of your system to select a transformer with an appropriate capacity and capability to handle variable loads.

2. Voltage regulation and efficiency: Look for transformers that offer high voltage regulation and efficiency to minimize power loss and ensure stable voltage supply.

3. Safety measures and certifications: Ensure the transformer meets safety standards and certifications to safeguard your equipment, personnel, and infrastructure.

4. Cost-effectiveness and long-term savings: Consider the initial investment, operational costs, and potential long-term savings associated with energy efficiency and maintenance requirements.

Installation and Maintenance of 20kV Dry Transformers

Proper installation and regular maintenance are crucial for maximizing the lifespan and performance of 20kV dry transformers:

1. Proper installation guidelines: Follow manufacturer-recommended installation procedures to ensure correct positioning, proper ventilation, and electrical connections.

2. Routine inspection and preventive maintenance: Regularly inspect the transformer for any signs of damage or malfunction. Perform preventive maintenance tasks such as cleaning, testing, and verifying connections.

3. Common troubleshooting issues and solutions: Familiarize yourself with common issues like insulation breakdown, excessive temperature rise, or abnormal noises. Understand the troubleshooting steps and when to seek professional assistance.


20kV dry transformers have revolutionized modern electricity distribution systems with their numerous benefits, including enhanced safety, reduced maintenance, and environmental advantages. These transformers find applications in electricity distribution networks, industries, and commercial sectors. By understanding their importance and considering key factors while choosing, installing, and maintaining them, you can ensure a reliable and efficient power supply for your electrical infrastructure.
