Is Toroidal Transformer Better for Audio?

Jul 24,2024 | nretec

  When it comes to audio equipment power supplies, audiophiles often think of transformers first. A good transformer can produce purer sound, quieter backgrounds, and smoother rhythms and melodies in audio equipment. So, why is a toroidal transformer more suitable for audio equipment among the many types of transformers?

Firstly, let's discuss the advantages of toroidal transformers compared to EI transformers and R-core transformers.

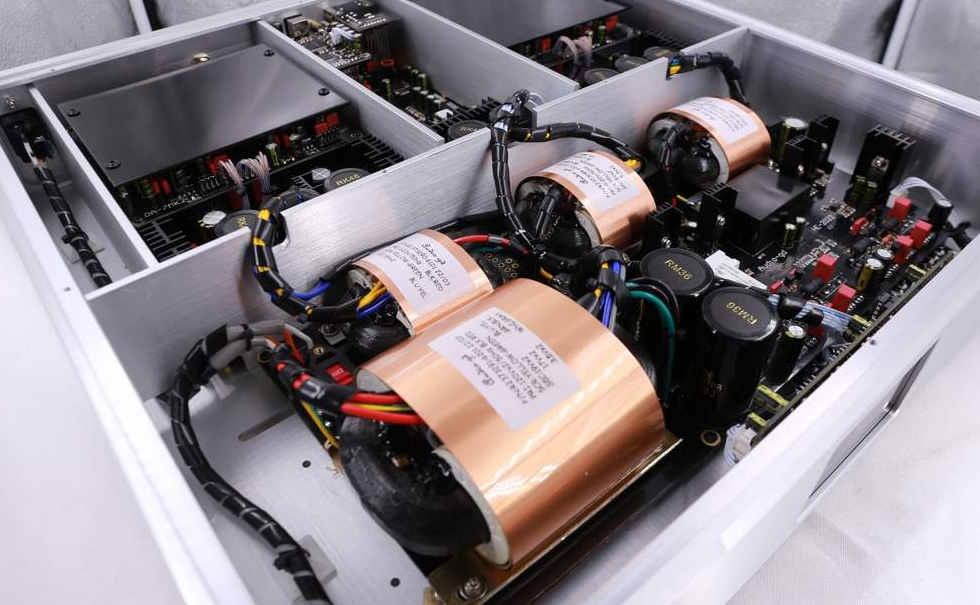

  1. High Efficiency: The design of toroidal transformers uses a closed-ring structure for the core, minimizing magnetic flux leakage. This means it can provide higher efficiency for the same volume and weight, which is crucial for audio amplifiers and preamplifiers.
  2. Low Electromagnetic Interference: Toroidal transformers concentrate magnetic flux within the core, resulting in minimal external magnetic flux leakage. This leads to very low electromagnetic interference (EMI) with nearby components, whereas EI transformers and R-core transformers, due to their design, have significant magnetic flux leakage that can cause substantial magnetic interference.
  3. Compact and Lightweight Structure: Due to their high efficiency, toroidal transformers can be smaller in size for the same power output, facilitating design and layout within audio equipment.

Comparison of Toroidal Transformers with Other Transformers

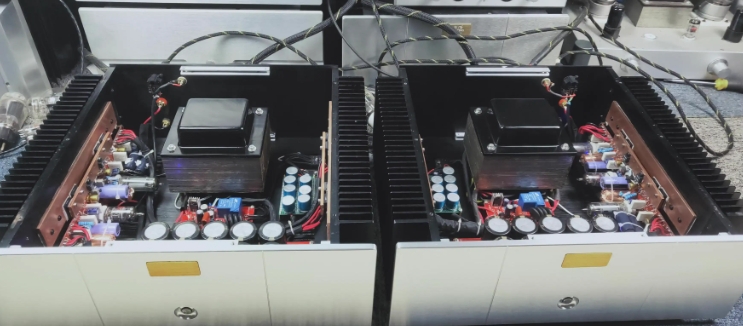

  1. EI Transformers: These are low-cost and commonly used in low-end audio equipment. However, their high electromagnetic interference limits their use in high-end audio equipment. Therefore, EI transformers are often seen in affordable home audio systems but rarely in high-end audio equipment.
  2. R-core Transformers: These are used as alternatives to toroidal transformers in some specific applications. They have similar efficiency and interference resistance to toroidal transformers but are slightly larger and heavier, with a slightly lower cost. Thus, R-core transformers are a good choice for audio equipment with high sound quality requirements but limited budgets.

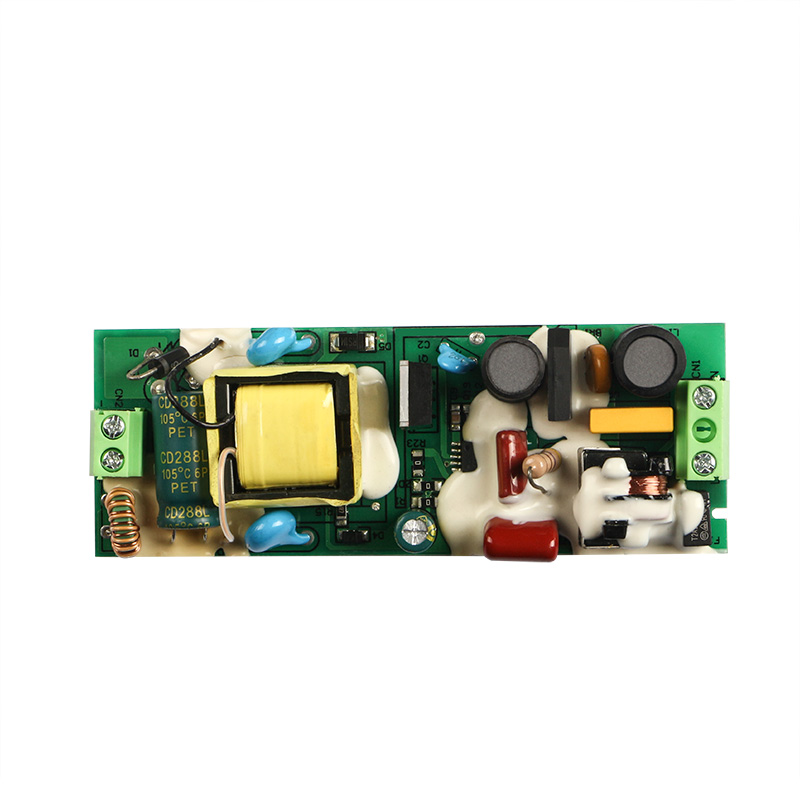

  3. Switching Power Supplies: These are very common in modern audio equipment due to their high efficiency, lightweight, and strong adjustability. However, switching power supplies can introduce high-frequency noise interference, making the sound very thin, which is a significant problem for audio equipment. Nonetheless, switching power supplies are ideal for low-end digital audio equipment requiring high power output due to their low cost. For high-fidelity analog audio equipment, toroidal transformers are still preferred.

Disadvantages of Toroidal Transformers

Despite their many advantages, toroidal transformers also have some potential drawbacks. For example, their manufacturing process is more complex, leading to higher costs. Additionally, toroidal transformers may generate significant heat under overload conditions, so good heat dissipation measures need to be considered in the power system design.

Conclusion

Toroidal transformers have significant advantages in audio equipment, especially in terms of efficiency, low EMI, and compact design, making them the first choice for many high-end audio devices. However, when selecting a transformer, one must also consider the specific needs and budget of the equipment. Whether it is for amplifiers, preamplifiers, equalizers, or stabilizers, toroidal transformers can provide excellent power solutions to help achieve exceptional sound quality.

By understanding the characteristics and applications of different types of transformers, you can better choose the right transformer for your audio equipment, thereby enhancing the performance and sound quality experience of your devices.
