Audio Transformers Explained: From Basics to Applications

Dec 19,2024 | nretec

December 19, 2024 8 minute read

Introduction to Audio Transformers

Audio transformers are critical components in audio equipment that transfer audio signals between circuits through electromagnetic induction. Unlike power transformers, audio transformers must maintain excellent transmission characteristics across a wide frequency range (typically 20Hz-20kHz).

Working Principle

Audio transformers operate based on electromagnetic induction law:

Primary winding converts electrical signals into magnetic fields
Magnetic fields transfer through the core to the secondary winding
Secondary winding converts magnetic fields back to electrical signals

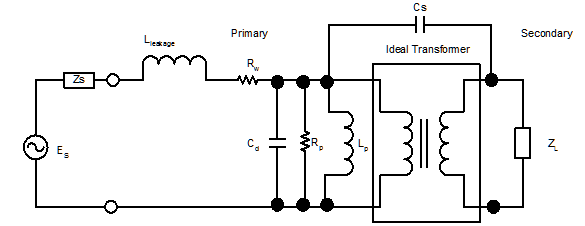

Audio transformer working principle diagram

Key Characteristics:

Frequency Response: 20Hz-20kHz
Impedance Ratio: Determined by turns ratio
Core Material: Typically silicon steel or ferrite

Core Functions

1. Impedance Matching

The primary function of audio transformers is impedance matching between different circuits:

Microphone (low impedance) to amplifier input (high impedance)
Amplifier output to speakers
Line-level equipment interconnection

2. Isolation

Electromagnetic coupling provides electrical isolation, which:

Eliminates ground loops
Suppresses common-mode interference
Protects equipment

3. Signal Balancing

In professional audio equipment, transformers are used for:

Converting unbalanced to balanced signals
Providing common-mode rejection
Reducing external interference

Applications

Audio transformers are essential in multiple domains:

1. Professional Audio Equipment

Mixing console I/O stages
Microphone preamplifiers
Direct Injection (DI) boxes

2. Home Audio

Vacuum tube amplifiers
Phono cartridge amplification
Speaker crossover networks

3. Recording Studio Equipment

Microphone signal processing
Line isolation
Signal distribution systems

Selection Guide

Consider these factors when choosing an audio transformer:

Frequency response range
Impedance ratio requirements
Distortion specifications
Shielding effectiveness
Power handling capability

Frequently Asked Questions

Do audio transformers affect sound quality?

High-quality audio transformers have minimal impact on sound quality. However, poor-quality transformers may introduce distortion, limit frequency response, or add noise. The key is selecting appropriate products and using them correctly.

Why are audio transformers still needed in modern equipment?

Despite active circuit alternatives, audio transformers maintain unique advantages in isolation, impedance matching, and interference rejection. They are particularly reliable in professional audio applications.

How to evaluate audio transformer quality?

Quality can be assessed through technical specifications like frequency response flatness, distortion levels, and isolation performance. Brand reputation and user reviews are also important references. Practical testing before purchase is recommended.
